Range of application：

Machine is widely used in high-precision turning of cylindrical surface, conical surface, plane, grooving, cutting, threading and turning curved surface and other processes of rotary parts such as shaft and cylinder, etc.

Feature：

●The X axis and Z axis of machine feed guideway adopt structure of double chevron guiding guideway, which is hardened and grinded, with high guiding precision, good precision retention and small reverse running clearance.

●The spindle box adopts cavity wall anti-vibration type box, high inherent frequency and strong anti-vibration ability. The connection between the box body and the base adopts thermal symmetry structure to effectively reduce the thermal drift of the spindle. Hollow spindle is supported by high precision imported rolling bearing to achieve high precision rotation.

●Tailstock guideway adopts one chevron one flat form with high positioning precision and large load capacity. The mandrel is supported by high precision imported rolling bearing, with high rotary precision.

●The machine is equipped with semi-closed protective guard, which can effectively prevent iron chips and coolant splashing, ensure the safety of the operator. Operation area is clean and in line with modern factory management.

●Can provide a variety of accessories: closed center rest, open center rest, grinding head accessories, boring accessories, etc.

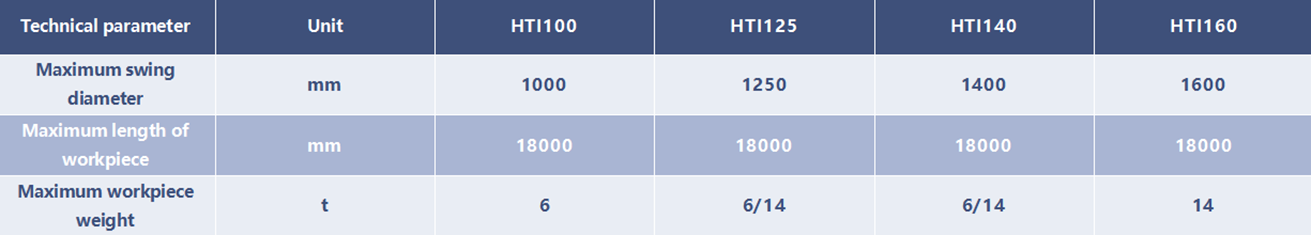

Specification：
